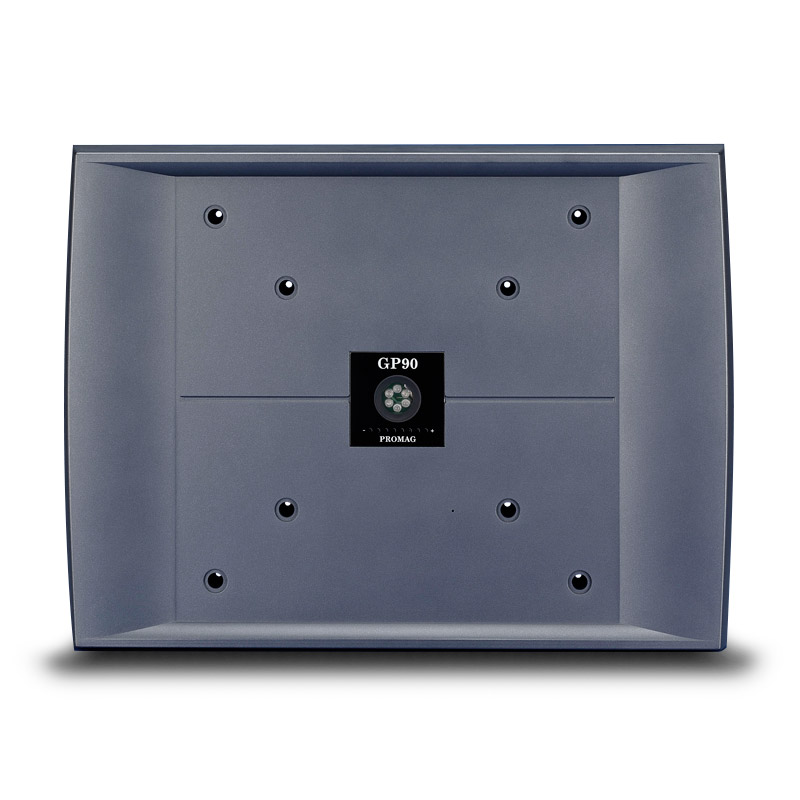

GP 90A

High-precision AUTO TUNING circuitry compensates
Extra long reading range up to 90cm with ISO passive cards; up to 130cm with special clamshell cardInternal relay control
Bright LED indicators, tuning LED bar
Firmware upgradable in the field
Attractive and waterproof housing design
High quality power supply with filter included

Power Requirements:Power supply input voltage: AC120/ 60Hz or 230V/50Hz
Output voltage: DC 18~19.2V / 1.5A (Max)
Wiegand : 26 bits
MSR ABA Track2 : ISO, ABA TK2 emulation
RS232 : Serial ASCII, 9600, N, 8, 1  ( Relay control )
RS485 or Special Customized Specification
Interface Cable - 90 cm
Read Range : Up to 90 cm at 18~19Vdc with ISO card in ideal conditions or up to 130cm with special clamshell card.
Frequency : 125KHz, ASK
Format : 64 bits, Manchester coding
Transponder : Read only
Chip type : EM H4001 / H4002 compatible
ID code : 10 digits in Hex ; 125KHz, ASK ; 64 bits , Manchester coding
Rate timing : MOD 64 (64 clock per bit)
Audio / Visual indication : Internal LED and Buzzer

Dimensions: 420 (L) x 320 (W) x 45(H) mm
Housing material: ABS

Operating temperature Range: -10 to 60 Deg C
Operating relative Humidity: 10 ~ 90%
Note: The Specification is subject to change without notice
